Curved. Bent.

Curved tempered glass and curved heat-strengthened glass are manufactured by heating high-quality annealed glass to its softening temperature, precisely forming it to the required curvature, and then rapidly cooling it under controlled conditions. This process provides enhanced mechanical strength, improved thermal resistance, and reliable safety performance while maintaining an elegant curved appearance.

Advanced synchronous roller-forming technology enables flexible production across a wide range of radii, dimensions, thicknesses, and curved configurations. Precise temperature control and optimized forming processes help minimize optical distortion, roller-wave deformation, and surface imperfections, ensuring consistent curvature, dimensional accuracy, excellent visual quality, and dependable performance.

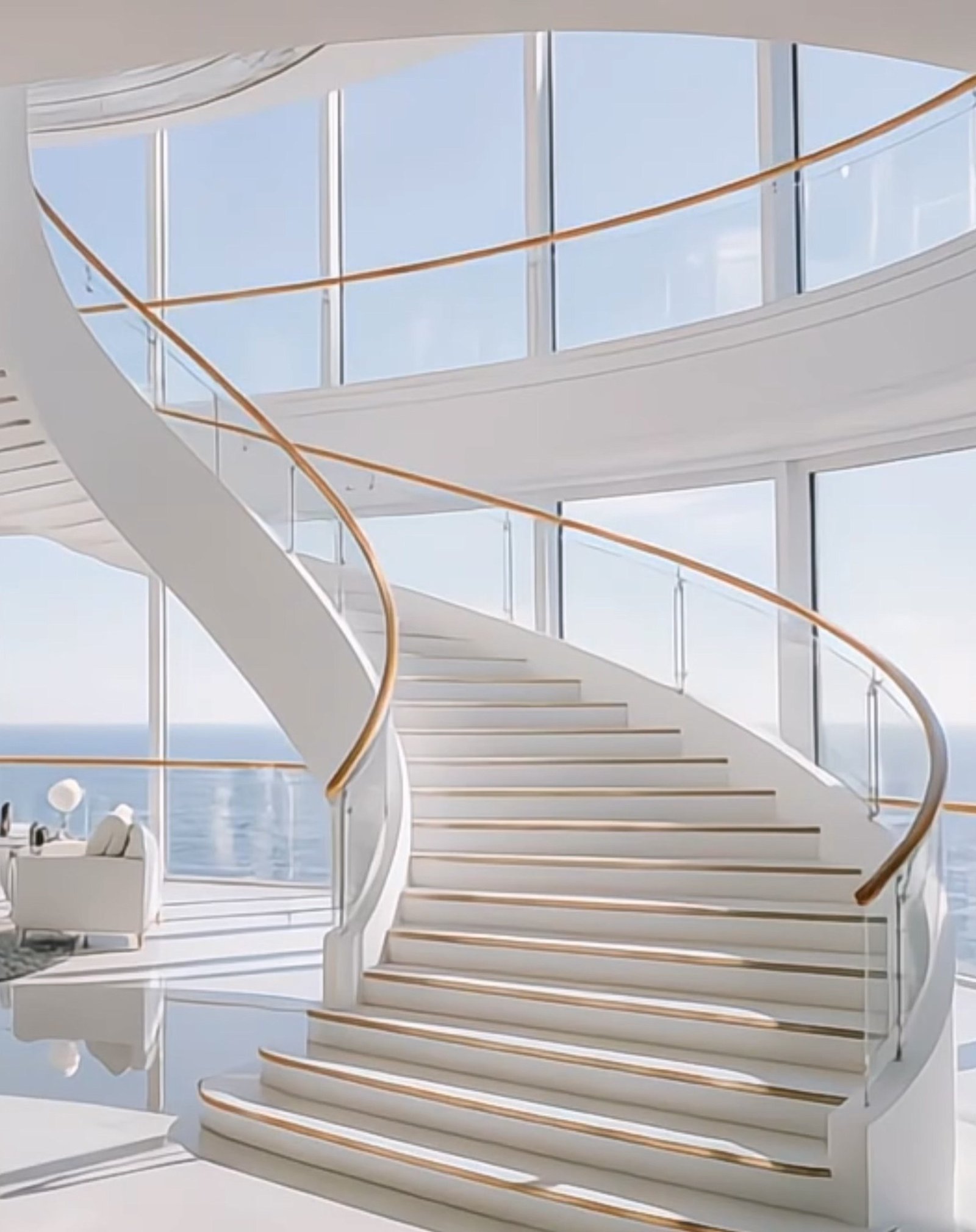

Curved safety glass is widely used in architectural façades, curtain walls, skylights, canopies, balustrades, revolving doors, display cases, transportation applications, and other projects requiring a combination of structural performance, safety, and sophisticated design.

Curved/Bent Glass

Options

SPECIAL NOTES

SPECIAL NOTES

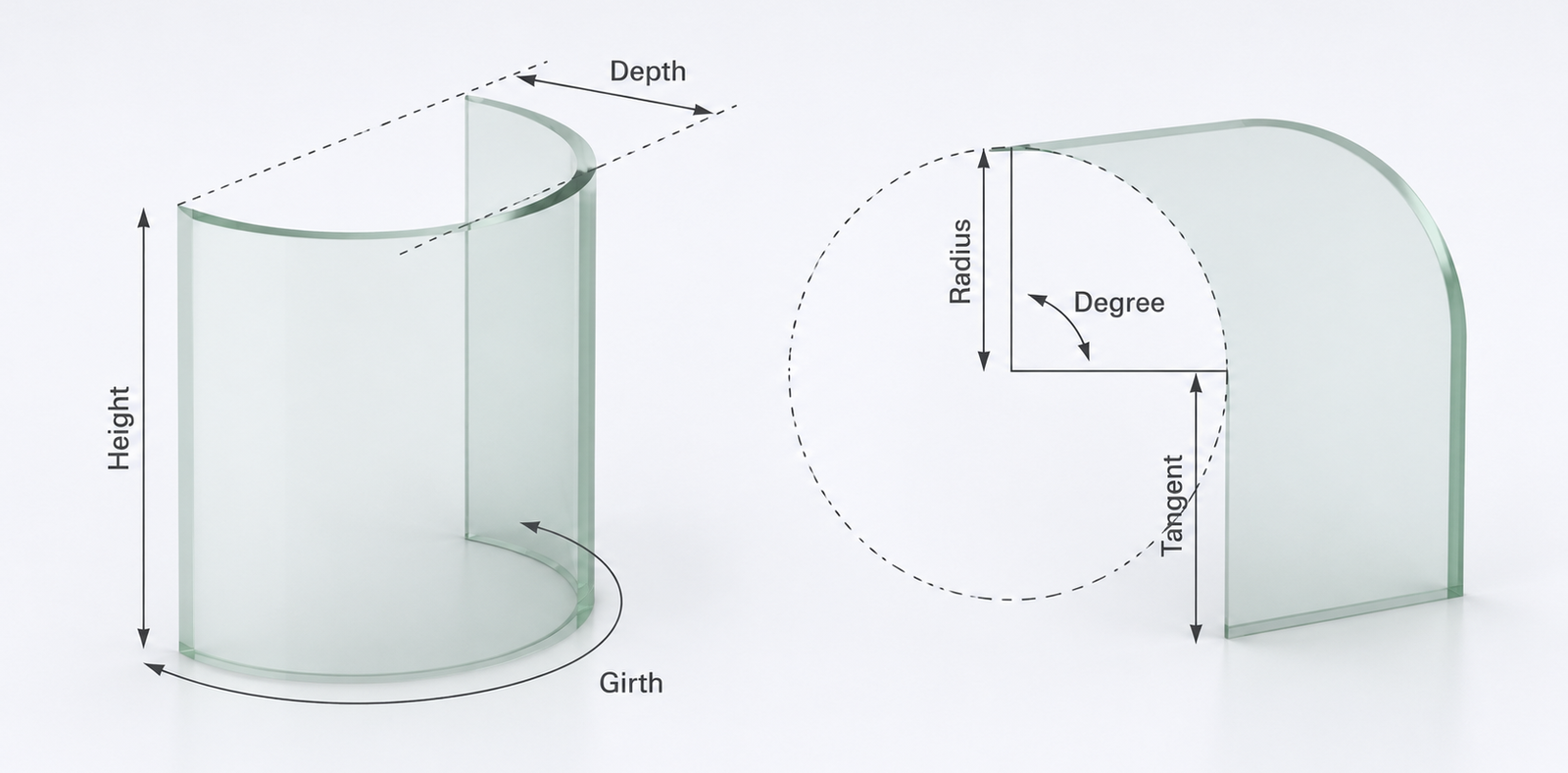

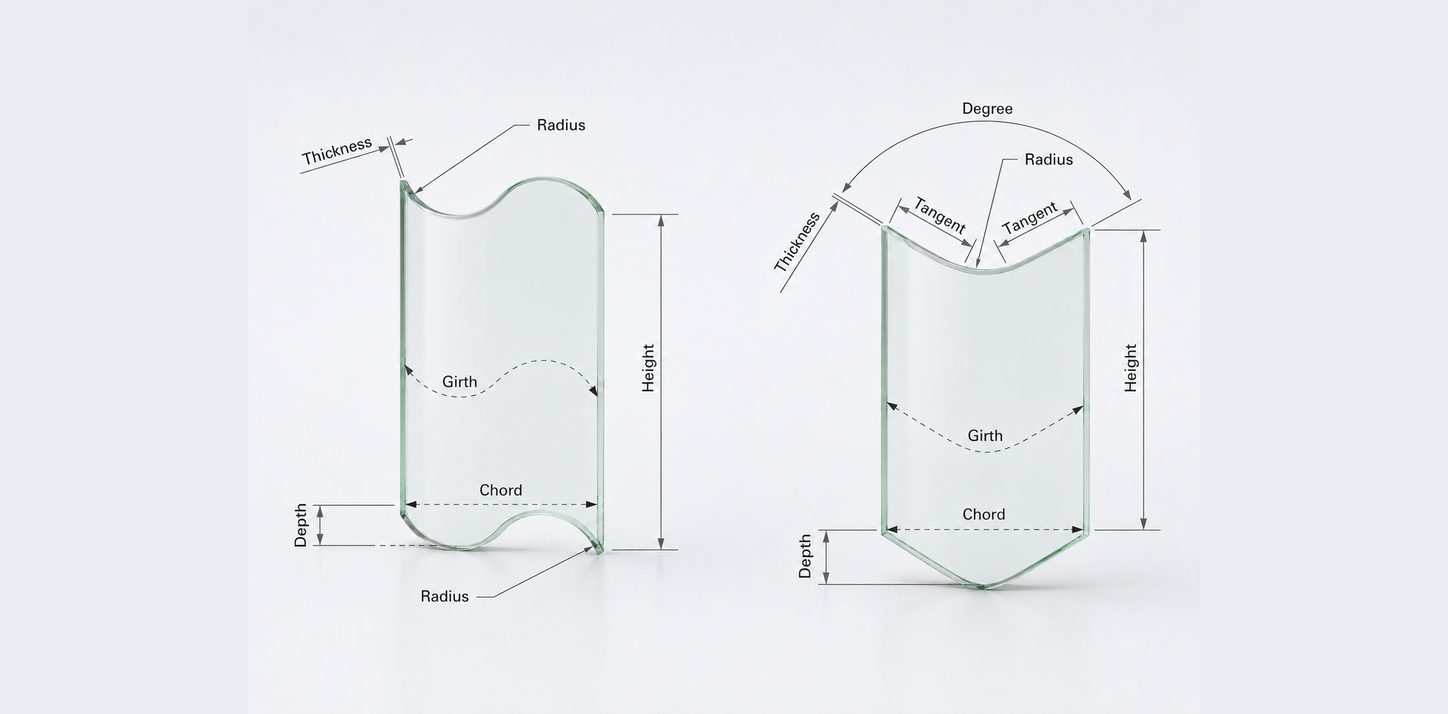

To facilitate accurate quotations and order processing, designers and clients are encouraged to use the following terminology:

  • Height: The straight edge length of the glass.
  • Depth: The distance between two parallel lines which enclose the curved glass.
  • Radius: The distance from the centre of the circle to the circumference of the circle
  • Degree: The angle of a segment in a circle expressed in degrees.
  • Tangent: A straight line extending from the arc of the curve.
  • Chord: The straight distance between the edges of the curve.
  • Girth: The distance around the surface of the curve.







Due to the specialized and complex nature of curved glass, please contact us to discuss your project requirements in detail so that the most suitable solution can be provided to meet your specific needs.
